A not necessarily closed convex polyhedron. More...

#include <NNC_Polyhedron_defs.hh>

Inheritance diagram for Parma_Polyhedra_Library::NNC_Polyhedron:

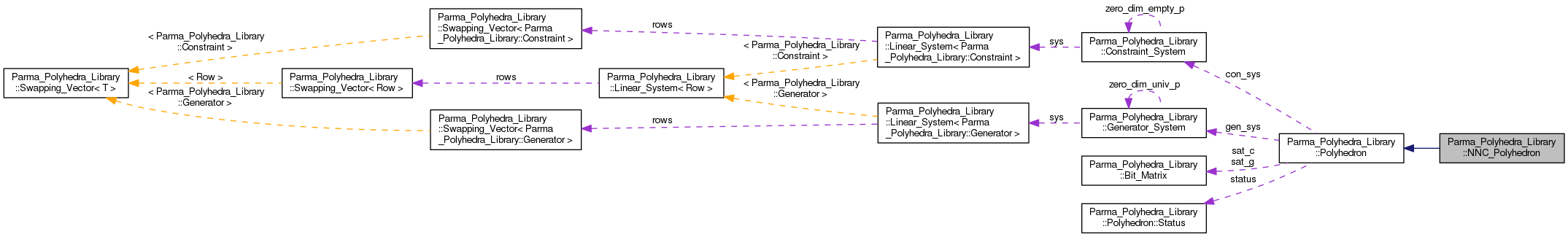

Collaboration diagram for Parma_Polyhedra_Library::NNC_Polyhedron:

[legend]

Public Member Functions
	NNC_Polyhedron (dimension_type num_dimensions=0, Degenerate_Element kind=UNIVERSE)
	Builds either the universe or the empty NNC polyhedron. More...

	NNC_Polyhedron (const Constraint_System &cs)
	Builds an NNC polyhedron from a system of constraints. More...

	NNC_Polyhedron (Constraint_System &cs, Recycle_Input dummy)
	Builds an NNC polyhedron recycling a system of constraints. More...

	NNC_Polyhedron (const Generator_System &gs)
	Builds an NNC polyhedron from a system of generators. More...

	NNC_Polyhedron (Generator_System &gs, Recycle_Input dummy)
	Builds an NNC polyhedron recycling a system of generators. More...

	NNC_Polyhedron (const Congruence_System &cgs)
	Builds an NNC polyhedron from a system of congruences. More...

	NNC_Polyhedron (Congruence_System &cgs, Recycle_Input dummy)
	Builds an NNC polyhedron recycling a system of congruences. More...

	NNC_Polyhedron (const C_Polyhedron &y, Complexity_Class complexity=ANY_COMPLEXITY)
	Builds an NNC polyhedron from the C polyhedron `y`. More...

template<typename Interval >
	NNC_Polyhedron (const Box< Interval > &box, Complexity_Class complexity=ANY_COMPLEXITY)
	Builds an NNC polyhedron out of a box. More...

	NNC_Polyhedron (const Grid &grid, Complexity_Class complexity=ANY_COMPLEXITY)
	Builds an NNC polyhedron out of a grid. More...

template<typename U >
	NNC_Polyhedron (const BD_Shape< U > &bd, Complexity_Class complexity=ANY_COMPLEXITY)
	Builds a NNC polyhedron out of a BD shape. More...

template<typename U >
	NNC_Polyhedron (const Octagonal_Shape< U > &os, Complexity_Class complexity=ANY_COMPLEXITY)
	Builds a NNC polyhedron out of an octagonal shape. More...

	NNC_Polyhedron (const NNC_Polyhedron &y, Complexity_Class complexity=ANY_COMPLEXITY)
	Ordinary copy constructor. More...

NNC_Polyhedron &	operator= (const NNC_Polyhedron &y)
	The assignment operator. (`*this` and `y` can be dimension-incompatible.) More...

NNC_Polyhedron &	operator= (const C_Polyhedron &y)
	Assigns to `*this` the C polyhedron `y`. More...

	~NNC_Polyhedron ()
	Destructor. More...

bool	poly_hull_assign_if_exact (const NNC_Polyhedron &y)
	If the poly-hull of `this` and `y` is exact it is assigned to `this` and `true` is returned, otherwise `false` is returned. More...

bool	upper_bound_assign_if_exact (const NNC_Polyhedron &y)
	Same as poly_hull_assign_if_exact(y). More...

void	positive_time_elapse_assign (const Polyhedron &y)
	Assigns to `this` (the best approximation of) the result of computing the positive time-elapse between `this` and `y`. More...

Public Member Functions inherited from Parma_Polyhedra_Library::Polyhedron
template<typename Input >
Input &	check_obj_space_dimension_overflow (Input &input, const Topology topol, const char method, const char reason)

dimension_type	space_dimension () const
	Returns the dimension of the vector space enclosing `*this`. More...

dimension_type	affine_dimension () const
	Returns , if `this` is empty; otherwise, returns the affine dimension of `this`. More...

const Constraint_System &	constraints () const
	Returns the system of constraints. More...

const Constraint_System &	minimized_constraints () const
	Returns the system of constraints, with no redundant constraint. More...

const Generator_System &	generators () const
	Returns the system of generators. More...

const Generator_System &	minimized_generators () const
	Returns the system of generators, with no redundant generator. More...

Congruence_System	congruences () const
	Returns a system of (equality) congruences satisfied by `*this`. More...

Congruence_System	minimized_congruences () const
	Returns a system of (equality) congruences satisfied by `this`, with no redundant congruences and having the same affine dimension as `this`. More...

Poly_Con_Relation	relation_with (const Constraint &c) const
	Returns the relations holding between the polyhedron `*this` and the constraint `c`. More...

Poly_Gen_Relation	relation_with (const Generator &g) const
	Returns the relations holding between the polyhedron `*this` and the generator `g`. More...

Poly_Con_Relation	relation_with (const Congruence &cg) const
	Returns the relations holding between the polyhedron `*this` and the congruence `c`. More...

bool	is_empty () const
	Returns `true` if and only if `*this` is an empty polyhedron. More...

bool	is_universe () const
	Returns `true` if and only if `*this` is a universe polyhedron. More...

bool	is_topologically_closed () const
	Returns `true` if and only if `*this` is a topologically closed subset of the vector space. More...

bool	is_disjoint_from (const Polyhedron &y) const
	Returns `true` if and only if `*this` and `y` are disjoint. More...

bool	is_discrete () const
	Returns `true` if and only if `*this` is discrete. More...

bool	is_bounded () const
	Returns `true` if and only if `*this` is a bounded polyhedron. More...

bool	contains_integer_point () const
	Returns `true` if and only if `*this` contains at least one integer point. More...

bool	constrains (Variable var) const
	Returns `true` if and only if `var` is constrained in `*this`. More...

bool	bounds_from_above (const Linear_Expression &expr) const
	Returns `true` if and only if `expr` is bounded from above in `*this`. More...

bool	bounds_from_below (const Linear_Expression &expr) const
	Returns `true` if and only if `expr` is bounded from below in `*this`. More...

bool	maximize (const Linear_Expression &expr, Coefficient &sup_n, Coefficient &sup_d, bool &maximum) const
	Returns `true` if and only if `this` is not empty and `expr` is bounded from above in `this`, in which case the supremum value is computed. More...

bool	maximize (const Linear_Expression &expr, Coefficient &sup_n, Coefficient &sup_d, bool &maximum, Generator &g) const
	Returns `true` if and only if `this` is not empty and `expr` is bounded from above in `this`, in which case the supremum value and a point where `expr` reaches it are computed. More...

bool	minimize (const Linear_Expression &expr, Coefficient &inf_n, Coefficient &inf_d, bool &minimum) const
	Returns `true` if and only if `this` is not empty and `expr` is bounded from below in `this`, in which case the infimum value is computed. More...

bool	minimize (const Linear_Expression &expr, Coefficient &inf_n, Coefficient &inf_d, bool &minimum, Generator &g) const
	Returns `true` if and only if `this` is not empty and `expr` is bounded from below in `this`, in which case the infimum value and a point where `expr` reaches it are computed. More...

bool	frequency (const Linear_Expression &expr, Coefficient &freq_n, Coefficient &freq_d, Coefficient &val_n, Coefficient &val_d) const
	Returns `true` if and only if there exist a unique value `val` such that `*this` saturates the equality `expr = val`. More...

bool	contains (const Polyhedron &y) const
	Returns `true` if and only if `*this` contains `y`. More...

bool	strictly_contains (const Polyhedron &y) const
	Returns `true` if and only if `*this` strictly contains `y`. More...

bool	OK (bool check_not_empty=false) const
	Checks if all the invariants are satisfied. More...

void	add_constraint (const Constraint &c)
	Adds a copy of constraint `c` to the system of constraints of `*this` (without minimizing the result). More...

void	add_generator (const Generator &g)
	Adds a copy of generator `g` to the system of generators of `*this` (without minimizing the result). More...

void	add_congruence (const Congruence &cg)
	Adds a copy of congruence `cg` to `*this`, if `cg` can be exactly represented by a polyhedron. More...

void	add_constraints (const Constraint_System &cs)
	Adds a copy of the constraints in `cs` to the system of constraints of `*this` (without minimizing the result). More...

void	add_recycled_constraints (Constraint_System &cs)
	Adds the constraints in `cs` to the system of constraints of `*this` (without minimizing the result). More...

void	add_generators (const Generator_System &gs)
	Adds a copy of the generators in `gs` to the system of generators of `*this` (without minimizing the result). More...

void	add_recycled_generators (Generator_System &gs)
	Adds the generators in `gs` to the system of generators of `*this` (without minimizing the result). More...

void	add_congruences (const Congruence_System &cgs)
	Adds a copy of the congruences in `cgs` to `*this`, if all the congruences can be exactly represented by a polyhedron. More...

void	add_recycled_congruences (Congruence_System &cgs)
	Adds the congruences in `cgs` to `*this`, if all the congruences can be exactly represented by a polyhedron. More...

void	refine_with_constraint (const Constraint &c)
	Uses a copy of constraint `c` to refine `*this`. More...

void	refine_with_congruence (const Congruence &cg)
	Uses a copy of congruence `cg` to refine `*this`. More...

void	refine_with_constraints (const Constraint_System &cs)
	Uses a copy of the constraints in `cs` to refine `*this`. More...

void	refine_with_congruences (const Congruence_System &cgs)
	Uses a copy of the congruences in `cgs` to refine `*this`. More...

template<typename FP_Format , typename Interval_Info >
void	refine_with_linear_form_inequality (const Linear_Form< Interval< FP_Format, Interval_Info > > &left, const Linear_Form< Interval< FP_Format, Interval_Info > > &right, bool is_strict=false)
	Refines `*this` with the constraint expressed by `left` `right` if `is_strict` is set, with the constraint `left` $\leq$ `right` otherwise. More...

template<typename FP_Format , typename Interval_Info >
void	generalized_refine_with_linear_form_inequality (const Linear_Form< Interval< FP_Format, Interval_Info > > &left, const Linear_Form< Interval< FP_Format, Interval_Info > > &right, Relation_Symbol relsym)
	Refines `*this` with the constraint expressed by `left` $\relsym$ `right`, where $\relsym$ is the relation symbol specified by `relsym`.. More...

template<typename FP_Format , typename Interval_Info >
void	refine_fp_interval_abstract_store (Box< Interval< FP_Format, Interval_Info > > &store) const
	Refines `store` with the constraints defining `*this`. More...

void	unconstrain (Variable var)
	Computes the cylindrification of `this` with respect to space dimension `var`, assigning the result to `this`. More...

void	unconstrain (const Variables_Set &vars)
	Computes the cylindrification of `this` with respect to the set of space dimensions `vars`, assigning the result to `this`. More...

void	intersection_assign (const Polyhedron &y)
	Assigns to `this` the intersection of `this` and `y`. More...

void	poly_hull_assign (const Polyhedron &y)
	Assigns to `this` the poly-hull of `this` and `y`. More...

void	upper_bound_assign (const Polyhedron &y)
	Same as poly_hull_assign(y). More...

void	poly_difference_assign (const Polyhedron &y)
	Assigns to `this` the poly-difference of `this` and `y`. More...

void	difference_assign (const Polyhedron &y)
	Same as poly_difference_assign(y). More...

bool	simplify_using_context_assign (const Polyhedron &y)
	Assigns to `this` a meet-preserving simplification of `this` with respect to `y`. If `false` is returned, then the intersection is empty. More...

void	affine_image (Variable var, const Linear_Expression &expr, Coefficient_traits::const_reference denominator=Coefficient_one())
	Assigns to `this` the affine image of `this` under the function mapping variable `var` to the affine expression specified by `expr` and `denominator`. More...

template<typename FP_Format , typename Interval_Info >
void	affine_form_image (Variable var, const Linear_Form< Interval< FP_Format, Interval_Info > > &lf)

void	affine_preimage (Variable var, const Linear_Expression &expr, Coefficient_traits::const_reference denominator=Coefficient_one())
	Assigns to `this` the affine preimage of `this` under the function mapping variable `var` to the affine expression specified by `expr` and `denominator`. More...

void	generalized_affine_image (Variable var, Relation_Symbol relsym, const Linear_Expression &expr, Coefficient_traits::const_reference denominator=Coefficient_one())
	Assigns to `this` the image of `this` with respect to the generalized affine relation $\mathrm{var}' \relsym \frac{\mathrm{expr}}{\mathrm{denominator}}$ , where $\mathord{\relsym}$ is the relation symbol encoded by `relsym`. More...

void	generalized_affine_preimage (Variable var, Relation_Symbol relsym, const Linear_Expression &expr, Coefficient_traits::const_reference denominator=Coefficient_one())
	Assigns to `this` the preimage of `this` with respect to the generalized affine relation $\mathrm{var}' \relsym \frac{\mathrm{expr}}{\mathrm{denominator}}$ , where $\mathord{\relsym}$ is the relation symbol encoded by `relsym`. More...

void	generalized_affine_image (const Linear_Expression &lhs, Relation_Symbol relsym, const Linear_Expression &rhs)
	Assigns to `this` the image of `this` with respect to the generalized affine relation $\mathrm{lhs}' \relsym \mathrm{rhs}$ , where $\mathord{\relsym}$ is the relation symbol encoded by `relsym`. More...

void	generalized_affine_preimage (const Linear_Expression &lhs, Relation_Symbol relsym, const Linear_Expression &rhs)
	Assigns to `this` the preimage of `this` with respect to the generalized affine relation $\mathrm{lhs}' \relsym \mathrm{rhs}$ , where $\mathord{\relsym}$ is the relation symbol encoded by `relsym`. More...

void	bounded_affine_image (Variable var, const Linear_Expression &lb_expr, const Linear_Expression &ub_expr, Coefficient_traits::const_reference denominator=Coefficient_one())
	Assigns to `this` the image of `this` with respect to the bounded affine relation $\frac{\mathrm{lb\_expr}}{\mathrm{denominator}} \leq \mathrm{var}' \leq \frac{\mathrm{ub\_expr}}{\mathrm{denominator}}$ . More...

void	bounded_affine_preimage (Variable var, const Linear_Expression &lb_expr, const Linear_Expression &ub_expr, Coefficient_traits::const_reference denominator=Coefficient_one())
	Assigns to `this` the preimage of `this` with respect to the bounded affine relation $\frac{\mathrm{lb\_expr}}{\mathrm{denominator}} \leq \mathrm{var}' \leq \frac{\mathrm{ub\_expr}}{\mathrm{denominator}}$ . More...

void	time_elapse_assign (const Polyhedron &y)
	Assigns to `this` the result of computing the time-elapse between `this` and `y`. More...

void	positive_time_elapse_assign (const Polyhedron &y)
	Assigns to `this` (the best approximation of) the result of computing the positive time-elapse between `this` and `y`. More...

void	wrap_assign (const Variables_Set &vars, Bounded_Integer_Type_Width w, Bounded_Integer_Type_Representation r, Bounded_Integer_Type_Overflow o, const Constraint_System *cs_p=0, unsigned complexity_threshold=16, bool wrap_individually=true)
	Wraps the specified dimensions of the vector space. More...

void	drop_some_non_integer_points (Complexity_Class complexity=ANY_COMPLEXITY)
	Possibly tightens `*this` by dropping some points with non-integer coordinates. More...

void	drop_some_non_integer_points (const Variables_Set &vars, Complexity_Class complexity=ANY_COMPLEXITY)
	Possibly tightens `*this` by dropping some points with non-integer coordinates for the space dimensions corresponding to `vars`. More...

void	topological_closure_assign ()
	Assigns to `*this` its topological closure. More...

void	BHRZ03_widening_assign (const Polyhedron &y, unsigned *tp=0)
	Assigns to `this` the result of computing the BHRZ03-widening between `this` and `y`. More...

void	limited_BHRZ03_extrapolation_assign (const Polyhedron &y, const Constraint_System &cs, unsigned *tp=0)
	Assigns to `this` the result of computing the limited extrapolation between `this` and `y` using the BHRZ03-widening operator. More...

void	bounded_BHRZ03_extrapolation_assign (const Polyhedron &y, const Constraint_System &cs, unsigned *tp=0)
	Assigns to `this` the result of computing the bounded extrapolation between `this` and `y` using the BHRZ03-widening operator. More...

void	H79_widening_assign (const Polyhedron &y, unsigned *tp=0)
	Assigns to `this` the result of computing the H79_widening between `this` and `y`. More...

void	widening_assign (const Polyhedron &y, unsigned *tp=0)
	Same as H79_widening_assign(y, tp). More...

void	limited_H79_extrapolation_assign (const Polyhedron &y, const Constraint_System &cs, unsigned *tp=0)
	Assigns to `this` the result of computing the limited extrapolation between `this` and `y` using the H79-widening operator. More...

void	bounded_H79_extrapolation_assign (const Polyhedron &y, const Constraint_System &cs, unsigned *tp=0)
	Assigns to `this` the result of computing the bounded extrapolation between `this` and `y` using the H79-widening operator. More...

void	add_space_dimensions_and_embed (dimension_type m)
	Adds `m` new space dimensions and embeds the old polyhedron in the new vector space. More...

void	add_space_dimensions_and_project (dimension_type m)
	Adds `m` new space dimensions to the polyhedron and does not embed it in the new vector space. More...

void	concatenate_assign (const Polyhedron &y)
	Assigns to `this` the concatenation of `this` and `y`, taken in this order. More...

void	remove_space_dimensions (const Variables_Set &vars)
	Removes all the specified dimensions from the vector space. More...

void	remove_higher_space_dimensions (dimension_type new_dimension)
	Removes the higher dimensions of the vector space so that the resulting space will have dimension `new_dimension`. More...

template<typename Partial_Function >
void	map_space_dimensions (const Partial_Function &pfunc)
	Remaps the dimensions of the vector space according to a partial function. More...

void	expand_space_dimension (Variable var, dimension_type m)
	Creates `m` copies of the space dimension corresponding to `var`. More...

void	fold_space_dimensions (const Variables_Set &vars, Variable dest)
	Folds the space dimensions in `vars` into `dest`. More...

	~Polyhedron ()
	Destructor. More...

void	m_swap (Polyhedron &y)
	Swaps `this` with polyhedron `y`. (`this` and `y` can be dimension-incompatible.) More...

void	ascii_dump () const
	Writes to `std::cerr` an ASCII representation of `*this`. More...

void	ascii_dump (std::ostream &s) const
	Writes to `s` an ASCII representation of `*this`. More...

void	print () const
	Prints `*this` to `std::cerr` using `operator<<`. More...

bool	ascii_load (std::istream &s)
	Loads from `s` an ASCII representation (as produced by ascii_dump(std::ostream&) const) and sets `*this` accordingly. Returns `true` if successful, `false` otherwise. More...

memory_size_type	total_memory_in_bytes () const
	Returns the total size in bytes of the memory occupied by `*this`. More...

memory_size_type	external_memory_in_bytes () const
	Returns the size in bytes of the memory managed by `*this`. More...

int32_t	hash_code () const
	Returns a 32-bit hash code for `*this`. More...

Additional Inherited Members
Public Types inherited from Parma_Polyhedra_Library::Polyhedron
typedef Coefficient	coefficient_type
	The numeric type of coefficients. More...

Static Public Member Functions inherited from Parma_Polyhedra_Library::Polyhedron
static dimension_type	max_space_dimension ()
	Returns the maximum space dimension all kinds of Polyhedron can handle. More...

static bool	can_recycle_constraint_systems ()
	Returns `true` indicating that this domain has methods that can recycle constraints. More...

static void	initialize ()
	Initializes the class. More...

static void	finalize ()
	Finalizes the class. More...

static bool	can_recycle_congruence_systems ()
	Returns `false` indicating that this domain cannot recycle congruences. More...

Protected Member Functions inherited from Parma_Polyhedra_Library::Polyhedron
	Polyhedron (Topology topol, dimension_type num_dimensions, Degenerate_Element kind)
	Builds a polyhedron having the specified properties. More...

	Polyhedron (const Polyhedron &y, Complexity_Class complexity=ANY_COMPLEXITY)
	Ordinary copy constructor. More...

	Polyhedron (Topology topol, const Constraint_System &cs)
	Builds a polyhedron from a system of constraints. More...

	Polyhedron (Topology topol, Constraint_System &cs, Recycle_Input dummy)
	Builds a polyhedron recycling a system of constraints. More...

	Polyhedron (Topology topol, const Generator_System &gs)
	Builds a polyhedron from a system of generators. More...

	Polyhedron (Topology topol, Generator_System &gs, Recycle_Input dummy)
	Builds a polyhedron recycling a system of generators. More...

template<typename Interval >
	Polyhedron (Topology topol, const Box< Interval > &box, Complexity_Class complexity=ANY_COMPLEXITY)
	Builds a polyhedron from a box. More...

Polyhedron &	operator= (const Polyhedron &y)
	The assignment operator. (`*this` and `y` can be dimension-incompatible.) More...

bool	BFT00_poly_hull_assign_if_exact (const Polyhedron &y)
	If the poly-hull of `this` and `y` is exact it is assigned to `this` and `true` is returned, otherwise `false` is returned. More...

bool	BHZ09_poly_hull_assign_if_exact (const Polyhedron &y)

bool	BHZ09_C_poly_hull_assign_if_exact (const Polyhedron &y)

bool	BHZ09_NNC_poly_hull_assign_if_exact (const Polyhedron &y)

void	drop_some_non_integer_points (const Variables_Set *vars_p, Complexity_Class complexity)
	Possibly tightens `this` by dropping some points with non-integer coordinates for the space dimensions corresponding to `vars_p`. More...

template<typename FP_Format , typename Interval_Info >
void	overapproximate_linear_form (const Linear_Form< Interval< FP_Format, Interval_Info > > &lf, const dimension_type lf_dimension, Linear_Form< Interval< FP_Format, Interval_Info > > &result)
	Helper function that overapproximates an interval linear form. More...

void	positive_time_elapse_assign_impl (const Polyhedron &y)
	Assuming `this` is NNC, assigns to `this` the result of the "positive time-elapse" between `*this` and `y`. More...

void	throw_invalid_argument (const char method, const char reason) const

void	throw_topology_incompatible (const char method, const char ph_name, const Polyhedron &ph) const

void	throw_topology_incompatible (const char method, const char c_name, const Constraint &c) const

void	throw_topology_incompatible (const char method, const char g_name, const Generator &g) const

void	throw_topology_incompatible (const char method, const char cs_name, const Constraint_System &cs) const

void	throw_topology_incompatible (const char method, const char gs_name, const Generator_System &gs) const

void	throw_dimension_incompatible (const char method, const char other_name, dimension_type other_dim) const

void	throw_dimension_incompatible (const char method, const char ph_name, const Polyhedron &ph) const

void	throw_dimension_incompatible (const char method, const char le_name, const Linear_Expression &le) const

void	throw_dimension_incompatible (const char method, const char c_name, const Constraint &c) const

void	throw_dimension_incompatible (const char method, const char g_name, const Generator &g) const

void	throw_dimension_incompatible (const char method, const char cg_name, const Congruence &cg) const

void	throw_dimension_incompatible (const char method, const char cs_name, const Constraint_System &cs) const

void	throw_dimension_incompatible (const char method, const char gs_name, const Generator_System &gs) const

void	throw_dimension_incompatible (const char method, const char cgs_name, const Congruence_System &cgs) const

template<typename C >
void	throw_dimension_incompatible (const char method, const char lf_name, const Linear_Form< C > &lf) const

void	throw_dimension_incompatible (const char method, const char var_name, Variable var) const

void	throw_dimension_incompatible (const char *method, dimension_type required_space_dim) const

void	throw_invalid_generator (const char method, const char g_name) const

void	throw_invalid_generators (const char method, const char gs_name) const

Static Protected Member Functions inherited from Parma_Polyhedra_Library::Polyhedron
template<typename FP_Format , typename Interval_Info >
static void	convert_to_integer_expression (const Linear_Form< Interval< FP_Format, Interval_Info > > &lf, const dimension_type lf_dimension, Linear_Expression &result)
	Helper function that makes `result` become a Linear_Expression obtained by normalizing the denominators in `lf`. More...

template<typename FP_Format , typename Interval_Info >
static void	convert_to_integer_expressions (const Linear_Form< Interval< FP_Format, Interval_Info > > &lf, const dimension_type lf_dimension, Linear_Expression &res, Coefficient &res_low_coeff, Coefficient &res_hi_coeff, Coefficient &denominator)
	Normalization helper function. More...

template<typename Linear_System1 , typename Row2 >
static bool	add_to_system_and_check_independence (Linear_System1 &eq_sys, const Row2 &eq)

static dimension_type	check_space_dimension_overflow (dimension_type dim, dimension_type max, const Topology topol, const char method, const char reason)

static dimension_type	check_space_dimension_overflow (dimension_type dim, const Topology topol, const char method, const char reason)

template<typename Object >
static Object &	check_obj_space_dimension_overflow (Object &input, Topology topol, const char method, const char reason)

Related Functions inherited from Parma_Polyhedra_Library::Polyhedron
template<typename PH >
bool	poly_hull_assign_if_exact (PH &p, const PH &q)
	If the poly-hull of `p` and `q` is exact it is assigned to `p` and `true` is returned, otherwise `false` is returned. More...

template<typename PH >
bool	poly_hull_assign_if_exact (PH &p, const PH &q)

std::ostream &	operator<< (std::ostream &s, const Polyhedron &ph)
	Output operator. More...

void	swap (Polyhedron &x, Polyhedron &y)
	Swaps `x` with `y`. More...

bool	operator== (const Polyhedron &x, const Polyhedron &y)
	Returns `true` if and only if `x` and `y` are the same polyhedron. More...

bool	operator!= (const Polyhedron &x, const Polyhedron &y)
	Returns `true` if and only if `x` and `y` are different polyhedra. More...

void	swap (Polyhedron &x, Polyhedron &y)

bool	operator!= (const Polyhedron &x, const Polyhedron &y)

bool	operator== (const Polyhedron &x, const Polyhedron &y)

std::ostream &	operator<< (std::ostream &s, const Polyhedron &ph)

Detailed Description

A not necessarily closed convex polyhedron.

An object of the class NNC_Polyhedron represents a not necessarily closed (NNC) convex polyhedron in the vector space $\Rset^n$ .

Note: Since NNC polyhedra are a generalization of closed polyhedra, any object of the class C_Polyhedron can be (explicitly) converted into an object of the class NNC_Polyhedron. The reason for defining two different classes is that objects of the class C_Polyhedron are characterized by a more efficient implementation, requiring less time and memory resources.

Definition at line 46 of file NNC_Polyhedron_defs.hh.

Constructor & Destructor Documentation

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron	(	dimension_type	num_dimensions = `0`,
		Degenerate_Element	kind = `UNIVERSE`
	)

inlineexplicit

Builds either the universe or the empty NNC polyhedron.

Parameters

num_dimensions	The number of dimensions of the vector space enclosing the NNC polyhedron;
kind	Specifies whether a universe or an empty NNC polyhedron should be built.

Exceptions

std::length_error Thrown if num_dimensions exceeds the maximum allowed space dimension.

Both parameters are optional: by default, a 0-dimension space universe NNC polyhedron is built.

Definition at line 36 of file NNC_Polyhedron_inlines.hh.

   : Polyhedron(NOT_NECESSARILY_CLOSED,
                check_space_dimension_overflow(num_dimensions,
                                               NOT_NECESSARILY_CLOSED,
                                               "NNC_Polyhedron(n, k)",
                                               "n exceeds the maximum "
                                               "allowed space dimension"),
                kind) {
 }

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron ( const Constraint_System & cs )

inlineexplicit

Builds an NNC polyhedron from a system of constraints.

The polyhedron inherits the space dimension of the constraint system.

Parameters

cs	The system of constraints defining the polyhedron.

Definition at line 48 of file NNC_Polyhedron_inlines.hh.

   : Polyhedron(NOT_NECESSARILY_CLOSED,
                check_obj_space_dimension_overflow(cs, NOT_NECESSARILY_CLOSED,
                                                   "NNC_Polyhedron(cs)",
                                                   "the space dimension of cs "
                                                   "exceeds the maximum allowed "
                                                   "space dimension")) {
 }

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron	(	Constraint_System &	cs,
		Recycle_Input	dummy
	)

inline

Builds an NNC polyhedron recycling a system of constraints.

The polyhedron inherits the space dimension of the constraint system.

Parameters

cs	The system of constraints defining the polyhedron. It is not declared `const` because its data-structures may be recycled to build the polyhedron.
dummy	A dummy tag to syntactically differentiate this one from the other constructors.

Definition at line 58 of file NNC_Polyhedron_inlines.hh.

   : Polyhedron(NOT_NECESSARILY_CLOSED,
                check_obj_space_dimension_overflow(cs, NOT_NECESSARILY_CLOSED,
                                                   "NNC_Polyhedron(cs, recycle)",
                                                   "the space dimension of cs "
                                                   "exceeds the maximum allowed "
                                                   "space dimension"),
                Recycle_Input()) {
 }

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron ( const Generator_System & gs )

inlineexplicit

Builds an NNC polyhedron from a system of generators.

The polyhedron inherits the space dimension of the generator system.

Parameters

gs	The system of generators defining the polyhedron.

Exceptions

std::invalid_argument Thrown if the system of generators is not empty but has no points.

Definition at line 69 of file NNC_Polyhedron_inlines.hh.

   : Polyhedron(NOT_NECESSARILY_CLOSED,
                check_obj_space_dimension_overflow(gs, NOT_NECESSARILY_CLOSED,
                                                   "NNC_Polyhedron(gs)",
                                                   "the space dimension of gs "
                                                   "exceeds the maximum allowed "
                                                   "space dimension")) {
 }

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron	(	Generator_System &	gs,
		Recycle_Input	dummy
	)

inline

Builds an NNC polyhedron recycling a system of generators.

The polyhedron inherits the space dimension of the generator system.

Parameters

gs	The system of generators defining the polyhedron. It is not declared `const` because its data-structures may be recycled to build the polyhedron.
dummy	A dummy tag to syntactically differentiate this one from the other constructors.

Exceptions

std::invalid_argument Thrown if the system of generators is not empty but has no points.

Definition at line 79 of file NNC_Polyhedron_inlines.hh.

   : Polyhedron(NOT_NECESSARILY_CLOSED,
                check_obj_space_dimension_overflow(gs, NOT_NECESSARILY_CLOSED,
                                                   "NNC_Polyhedron(gs, recycle)",
                                                   "the space dimension of gs "
                                                   "exceeds the maximum allowed "
                                                   "space dimension"),
                Recycle_Input()) {
 }

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron ( const Congruence_System & cgs )

explicit

Builds an NNC polyhedron from a system of congruences.

The polyhedron inherits the space dimension of the congruence system.

Parameters

cgs	The system of congruences defining the polyhedron. It is not declared `const` because its data-structures may be recycled to build the polyhedron.

Definition at line 38 of file NNC_Polyhedron.cc.

References Parma_Polyhedra_Library::Polyhedron::add_congruences(), and Parma_Polyhedra_Library::Polyhedron::OK().

   : Polyhedron(NOT_NECESSARILY_CLOSED,
                check_space_dimension_overflow(cgs.space_dimension(),
                                               NOT_NECESSARILY_CLOSED,
                                               "NNC_Polyhedron(cgs)",
                                               "the space dimension of cgs "
                                               "exceeds the maximum allowed "
                                               "space dimension"),
                UNIVERSE) {
   add_congruences(cgs);
   PPL_ASSERT_HEAVY(OK());
 }

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron	(	Congruence_System &	cgs,
		Recycle_Input	dummy
	)

Builds an NNC polyhedron recycling a system of congruences.

The polyhedron inherits the space dimension of the congruence system.

Parameters

cgs	The system of congruences defining the polyhedron. It is not declared `const` because its data-structures may be recycled to build the polyhedron.
dummy	A dummy tag to syntactically differentiate this one from the other constructors.

Definition at line 51 of file NNC_Polyhedron.cc.

References Parma_Polyhedra_Library::Polyhedron::add_congruences(), and Parma_Polyhedra_Library::Polyhedron::OK().

   : Polyhedron(NOT_NECESSARILY_CLOSED,
                check_space_dimension_overflow(cgs.space_dimension(),
                                               NOT_NECESSARILY_CLOSED,
                                               "NNC_Polyhedron(cgs, recycle)",
                                               "the space dimension of cgs "
                                               "exceeds the maximum allowed "
                                               "space dimension"),
                UNIVERSE) {
   add_congruences(cgs);
   PPL_ASSERT_HEAVY(OK());
 }

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron	(	const C_Polyhedron &	y,
		Complexity_Class	complexity = `ANY_COMPLEXITY`
	)

explicit

Builds an NNC polyhedron from the C polyhedron y.

Parameters

y	The C polyhedron to be used;
complexity	This argument is ignored.

Definition at line 32 of file NNC_Polyhedron.cc.

References Parma_Polyhedra_Library::Polyhedron::add_constraints(), Parma_Polyhedra_Library::Polyhedron::constraints(), and Parma_Polyhedra_Library::Polyhedron::OK().

   : Polyhedron(NOT_NECESSARILY_CLOSED, y.space_dimension(), UNIVERSE) {
   add_constraints(y.constraints());
   PPL_ASSERT_HEAVY(OK());
 }

template<typename Interval >

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron	(	const Box< Interval > &	box,
		Complexity_Class	complexity = `ANY_COMPLEXITY`
	)

inlineexplicit

Builds an NNC polyhedron out of a box.

The polyhedron inherits the space dimension of the box and is the most precise that includes the box.

Parameters

box	The box representing the polyhedron to be built;
complexity	This argument is ignored as the algorithm used has polynomial complexity.

Exceptions

std::length_error Thrown if the space dimension of box exceeds the maximum allowed space dimension.

Definition at line 91 of file NNC_Polyhedron_inlines.hh.

   : Polyhedron(NOT_NECESSARILY_CLOSED,
                check_obj_space_dimension_overflow(box, NOT_NECESSARILY_CLOSED,
                                                   "NNC_Polyhedron(box)",
                                                   "the space dimension of box "
                                                   "exceeds the maximum allowed "
                                                   "space dimension")) {
 }

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron	(	const Grid &	grid,
		Complexity_Class	complexity = `ANY_COMPLEXITY`
	)

explicit

Builds an NNC polyhedron out of a grid.

The polyhedron inherits the space dimension of the grid and is the most precise that includes the grid.

Parameters

grid	The grid used to build the polyhedron.
complexity	This argument is ignored as the algorithm used has polynomial complexity.

Definition at line 64 of file NNC_Polyhedron.cc.

References Parma_Polyhedra_Library::Polyhedron::add_constraints(), and Parma_Polyhedra_Library::Grid::constraints().

   : Polyhedron(NOT_NECESSARILY_CLOSED,
                check_space_dimension_overflow(grid.space_dimension(),
                                               NOT_NECESSARILY_CLOSED,
                                               "NNC_Polyhedron(grid)",
                                               "the space dimension of grid "
                                               "exceeds the maximum allowed "
                                               "space dimension"),
                UNIVERSE) {
   add_constraints(grid.constraints());
 }

template<typename U >

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron	(	const BD_Shape< U > &	bd,
		Complexity_Class	complexity = `ANY_COMPLEXITY`
	)

inlineexplicit

Builds a NNC polyhedron out of a BD shape.

The polyhedron inherits the space dimension of the BD shape and is the most precise that includes the BD shape.

Parameters

bd	The BD shape used to build the polyhedron.
complexity	This argument is ignored as the algorithm used has polynomial complexity.

Definition at line 102 of file NNC_Polyhedron_inlines.hh.

References Parma_Polyhedra_Library::Polyhedron::add_constraints(), and Parma_Polyhedra_Library::BD_Shape< T >::constraints().

   : Polyhedron(NOT_NECESSARILY_CLOSED,
                check_space_dimension_overflow(bd.space_dimension(),
                                               NOT_NECESSARILY_CLOSED,
                                               "NNC_Polyhedron(bd)",
                                               "the space dimension of bd "
                                               "exceeds the maximum allowed "
                                               "space dimension"),
                UNIVERSE) {
   add_constraints(bd.constraints());
 }

template<typename U >

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron	(	const Octagonal_Shape< U > &	os,
		Complexity_Class	complexity = `ANY_COMPLEXITY`
	)

inlineexplicit

Builds a NNC polyhedron out of an octagonal shape.

The polyhedron inherits the space dimension of the octagonal shape and is the most precise that includes the octagonal shape.

Parameters

os	The octagonal shape used to build the polyhedron.
complexity	This argument is ignored as the algorithm used has polynomial complexity.

Definition at line 116 of file NNC_Polyhedron_inlines.hh.

References Parma_Polyhedra_Library::Polyhedron::add_constraints(), and Parma_Polyhedra_Library::Octagonal_Shape< T >::constraints().

   : Polyhedron(NOT_NECESSARILY_CLOSED,
                check_space_dimension_overflow(os.space_dimension(),
                                               NOT_NECESSARILY_CLOSED,
                                               "NNC_Polyhedron(os)",
                                               "the space dimension of os "
                                               "exceeds the maximum allowed "
                                               "space dimension"),
                UNIVERSE) {
   add_constraints(os.constraints());
 }

Parma_Polyhedra_Library::NNC_Polyhedron::NNC_Polyhedron	(	const NNC_Polyhedron &	y,
		Complexity_Class	complexity = `ANY_COMPLEXITY`
	)

inline

Ordinary copy constructor.

Definition at line 129 of file NNC_Polyhedron_inlines.hh.

130 : Polyhedron(y) {

131 }

Parma_Polyhedra_Library::Polyhedron::Polyhedron

Polyhedron(Topology topol, dimension_type num_dimensions, Degenerate_Element kind)

Builds a polyhedron having the specified properties.

Definition: Polyhedron_nonpublic.cc:52

Parma_Polyhedra_Library::NNC_Polyhedron::~NNC_Polyhedron ( )

inline

Destructor.

Definition at line 32 of file NNC_Polyhedron_inlines.hh.

32 {

33 }

Member Function Documentation

NNC_Polyhedron & Parma_Polyhedra_Library::NNC_Polyhedron::operator= ( const NNC_Polyhedron & y )

inline

The assignment operator. (*this and y can be dimension-incompatible.)

Definition at line 134 of file NNC_Polyhedron_inlines.hh.

References Parma_Polyhedra_Library::Polyhedron::operator=().

                                                  {
   Polyhedron::operator=(y);
   return *this;
 }

NNC_Polyhedron & Parma_Polyhedra_Library::NNC_Polyhedron::operator= ( const C_Polyhedron & y )

inline

Assigns to *this the C polyhedron y.

Definition at line 140 of file NNC_Polyhedron_inlines.hh.

References Parma_Polyhedra_Library::Polyhedron::m_swap().

                                                {
   NNC_Polyhedron nnc_y(y);
   m_swap(nnc_y);
   return *this;
 }

bool Parma_Polyhedra_Library::NNC_Polyhedron::poly_hull_assign_if_exact ( const NNC_Polyhedron & y )

If the poly-hull of *this and y is exact it is assigned to *this and true is returned, otherwise false is returned.

Exceptions

std::invalid_argument Thrown if *this and y are dimension-incompatible.

Definition at line 77 of file NNC_Polyhedron.cc.

References Parma_Polyhedra_Library::Polyhedron::space_dimension().

Referenced by upper_bound_assign_if_exact().

                                                                     {
 #define USE_BHZ09 1
 #if USE_BHZ09 // [BagnaraHZ09]
   // Dimension-compatibility check.
   if (space_dimension() != y.space_dimension()) {
     throw_dimension_incompatible("poly_hull_assign_if_exact(y)", "y", y);
   }
   return BHZ09_poly_hull_assign_if_exact(y);
 #else // Old implementation.
   return PPL::poly_hull_assign_if_exact(*this, y);
 #endif
 #undef USE_BHZ09
 }

void Parma_Polyhedra_Library::NNC_Polyhedron::positive_time_elapse_assign ( const Polyhedron & y )

inline

Assigns to *this (the best approximation of) the result of computing the positive time-elapse between *this and y.

Exceptions

std::invalid_argument Thrown if *this and y are dimension-incompatible.

Definition at line 152 of file NNC_Polyhedron_inlines.hh.

References Parma_Polyhedra_Library::Polyhedron::positive_time_elapse_assign_impl().

Referenced by Parma_Polyhedra_Library::C_Polyhedron::positive_time_elapse_assign().

                                                                {
   Polyhedron::positive_time_elapse_assign_impl(y);
 }

bool Parma_Polyhedra_Library::NNC_Polyhedron::upper_bound_assign_if_exact ( const NNC_Polyhedron & y )

inline

Same as poly_hull_assign_if_exact(y).

Definition at line 147 of file NNC_Polyhedron_inlines.hh.

References poly_hull_assign_if_exact().

                                                                    {
   return poly_hull_assign_if_exact(y);
 }

The documentation for this class was generated from the following files:

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
